Option Sets

SDK provides read access for values that are accepted in comboxes of UK risk data. In other words it exposes the same information as viewing the values of a combo box with the Epic UI except through an api.
Get /api/option_sets/{application_type}/{application_version}

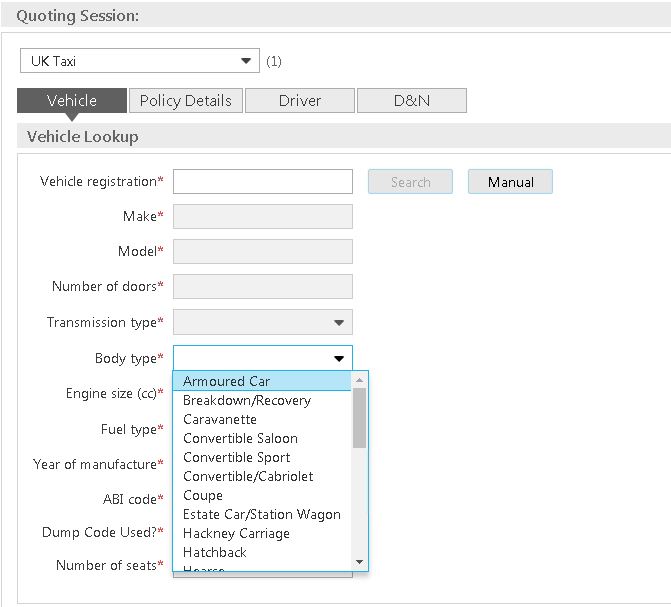

This method is used to retrieve all the option sets for the specified application type and version. In other words, this method mimics the Epic behaviour of the following screen:

Lookup

Can be accessed via the URI [Your_SDK_Service]/api/option_sets/{application_type}/{application_version}.

Request Parameters

application_type

  • Type: System.String

    Type of the application for which option sets are requested. Accepted values can be obtained from the quote definition.

application_version

  • Type: System.String

    Version of the application for which option sets are requested. Accepted values can be obtained from the quote definition.

Response

  • Status Code: 200

    Resource Representation: Dictionary(Of String, Dictionary(Of Option))

Examples

Get all option sets for an application type.

VB
Copy
 1' Dim SDK_SERVICE_URI As New Uri("https://Fully_Qualified_Service_Computer_Name/SDK_Service")
 2' Constant DATABASE preset to current database name
 3' Constant AUTHENTICATION_KEY set to current authentication key
 4
 5'Retrieve the option sets for a quote for a UK Motor policy.
 6Try
 7  'These values can be obtained from the quote definition (Get /api/quotes/definition/{quote_guid}).
 8  Dim sApplicationType As String = "UKMotor"
 9  Dim sApplicationVersion As String = "1.1.3"
10
11  Dim sOptionSetsURL As String = SDK_SERVICE_URI & "/api/option_sets/" & sApplicationType & "/" & sApplicationVersion
12  Dim sOptionSetsResponse As String
13  Using oWebclient As New WebClient
14    oWebclient.Encoding = Encoding.UTF8
15    With oWebclient.Headers
16      .Add("AuthenticationKey", AUTHENTICATION_KEY)
17      .Add("DatabaseName", DATABASE)
18    End With
19    Dim aOptionSetsResponse As Byte() = oWebclient.DownloadData(sOptionSetsURL)
20    sOptionSetsResponse = oWebclient.Encoding.GetString(aOptionSetsResponse)
21  End Using
22  Dim jss As New System.Web.Script.Serialization.JavaScriptSerializer
23  Dim dictOptionSets As Dictionary(Of String, Object) = jss.Deserialize(Of Dictionary(Of String, Object))(sOptionSetsResponse)
24
25  For Each kvpOptionSet As KeyValuePair(Of String, Object) In dictOptionSets
26    Dim dictOptionSet As Dictionary(Of String, Object) = CType(kvpOptionSet.Value, Dictionary(Of String, Object))
27
28    Console.WriteLine("Option Set: " & kvpOptionSet.Key)
29    For Each dictOption As Dictionary(Of String, Object) In dictOptionSet.Values
30      Console.WriteLine("Option ID: " & dictOption("value").ToString)
31      Console.WriteLine("Option Description: " & dictOption("description").ToString)
32    Next
33  Next
34
35Catch ex As WebException
36  Dim sStatusCode As String = ex.Status.ToString
37  Dim sError As String = New IO.StreamReader(ex.Response.GetResponseStream).ReadToEnd
38  Console.WriteLine("Status Code: " & sStatusCode & ", Error: " & sError)
39Catch ex As Exception
40  Console.WriteLine(ex.Message)
41End Try
Get /api/option_sets/{application_type}/{application_version}/{option_set_id}

Can be accessed via the URI [Your_SDK_Service]/api/option_sets/{application_type}/{application_version}/{option_set_id}.

Request Parameters

application_type

  • Type: System.String

    Type of the application for which option set is requested. Accepted values can be obtained from the quote definition.

application_version

  • Type: System.String

    Version of the application for which option set is requested. Accepted values can be obtained from the quote definition.

option_set_id

  • Type: System.String

    Name of the requested Option set. Accepted values can be obtained from the quote definition.

Response

  • Status Code: 200

    Resource Representation: Dictionary(Of Option)

Examples

Get a particular option set.

VB
Copy
 1' Dim SDK_SERVICE_URI As New Uri("https://Fully_Qualified_Service_Computer_Name/SDK_Service")
 2' Constant DATABASE preset to current database name
 3' Constant AUTHENTICATION_KEY set to current authentication key
 4
 5'Retrieve the option sets for a quote for a UK Motor policy.
 6Try
 7  'These values can be obtained from the quote definition (Get /api/quotes/definition/{quote_guid}).
 8  Dim sApplicationType As String = "UKMotor"
 9  Dim sApplicationVersion As String = "1.1.1"
10  Dim sOptionSetId As String = "PLBodyType_CV" 'The option set id can be obtained from Get /api/otion_sets/{sApplicationType}/{sApplicationVersion} or validation messages."
11
12  Dim sOptionSetsURL As String = SDK_SERVICE_URI & "/api/option_sets/" & sApplicationType & "/" & sApplicationVersion & "/" & sOptionSetId
13  Dim sOptionSetsResponse As String
14  Using oWebclient As New WebClient
15    oWebclient.Encoding = Encoding.UTF8
16    With oWebclient.Headers
17      .Add("AuthenticationKey", AUTHENTICATION_KEY)
18      .Add("DatabaseName", DATABASE)
19    End With
20    Dim aOptionSetsResponse As Byte() = oWebclient.DownloadData(sOptionSetsURL)
21    sOptionSetsResponse = oWebclient.Encoding.GetString(aOptionSetsResponse)
22  End Using
23  Dim jss As New System.Web.Script.Serialization.JavaScriptSerializer
24  Dim dictOptionSet As Dictionary(Of String, Object) = jss.Deserialize(Of Dictionary(Of String, Object))(sOptionSetsResponse)
25  For Each dictOption As Dictionary(Of String, Object) In dictOptionSet.Values
26    Console.WriteLine("Option ID: " & dictOption("value").ToString)
27    Console.WriteLine("Option Description: " & dictOption("description").ToString)
28    Console.WriteLine()
29  Next
30
31Catch ex As WebException
32  Dim sStatusCode As String = ex.Status.ToString
33  Dim sError As String = New IO.StreamReader(ex.Response.GetResponseStream).ReadToEnd
34  Console.WriteLine("Status Code: " & sStatusCode & ", Error: " & sError)
35Catch ex As Exception
36  Console.WriteLine(ex.Message)
37End Try
